Benemed Industry Company

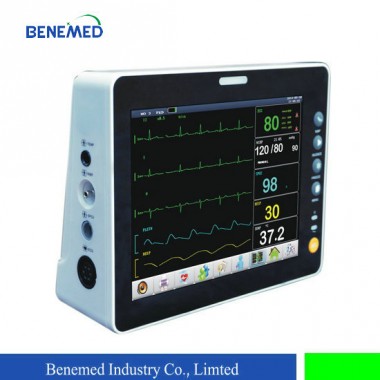

BenePM-8 Multi-parameter Patient monitor with 8 inch Color TFT screen

Features:

• Unique slim design, style with space-saving
• Parameters: ECG, SPO2, NIBP, HR, TEMP, RESP
• Networkable with Central Monitoring System
• 720 hours trend data analysis
• Built-in rechargeable battery with Max 6 hour operating time
• Optional: Recorder. Touch screen, Central Monitoring (LAN/WLAN), Handle, Car Charger

Specification

ECG

Lead mode: 5 Leads(RA, LA, LL, RL, V)

Connection method:,,, AVR, AVL, AVF, V

Lead Mode: 3 Leads (RA, LA, LL)

Connection method:,,

Waveform: 1ch

Gain: x250, x500, x1000, x2000

HR Range: Adult: 15~300bpm

          Neo/Ped: 15~350bpm

Accuracy: 1% or 1bpm, which great

Resolution: 1bpm

Sensitivity: 200(uVp-p)

Differential input impedance:5M

ST segment Monitoring Range

Measure Range:-2.0~+2.0mV

Measure Accuracy: -0.8mV~+0.8mV

Heart rate

Measuring range: 0~350bpm

Accuracy: 1bpm

Resolution: 1bpm

Sensitivity: 200UVp-p

Respiration

Method: Impedance between R-F(RA-LL)

Differential Input Impedance: 2.5M

Measuring Impedance Range: 0.3~3.0 M

Base line Impedance Range: 200~4000

Bandwidth: 0.1~2.5Hz

Resp. Rate: Adult: 2~120BrPM

           Neo/Ped: 2~150BrPM

Resolution: 1 BrPM

Accuracy:2 BrPM

Alarm: 10~40S

NIBP

Method: Oscillometric

Mode: Manual/Auto/STAT

Measuring Interval in AUTO Mode: 1,2,3,4,5,10,15,30,60,90,120,180,240,480(Min)

Measuring Period in STAT Mode: 5 Min

Pulse Rate Range: 40~240bpm

Alarm Type: SYS, DIA, MEAN

Resolution

Pressure: 1mmHg

Accuracy: Maximum Mean error: 5mmHg

Maximum Standard deviation: 8mmHg

SPO2

Display: Number of SPO2, waveform of capacity, Pulse

Measuring range: 0~100%

Resolution: 1%

Accuracy: 70~100% (2%)

Alarm system: Audio-video alarm

Pulse rate range: 0~300bpm

TEMP

Channel: 2

Measuring and Alarm Range: 0~50

Resolution:0.1

Accuracy: 0.1

Actualization interval: about 1 Second.

Average Time Constant: 10 Second.

System

Display system: 8 inch high-brightness color display

Network with central station

Resolution: 800x600

Power supply:AC100V~250V, 50Hz/60Hz

Optional Parameter: IBP, EtCO2, Recorder,Touch Screen, Central Monitoring (LAN/WLAN), Handle, Car Charger

Size: 170mm220mm78mm

Weight: 1.5kg
