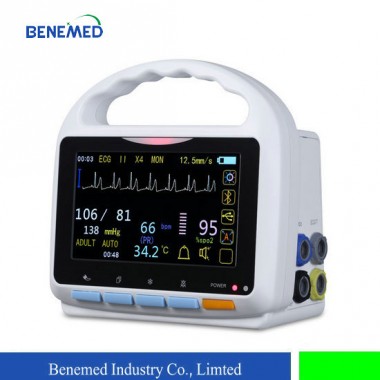

5 inch Touch Screen Color TFT Screen

Vital Sign Patient Monitor BenePM-5

• Parameters: ECG,NIBP,SPO2,PR,TEMP.
• Touch screen, 5.0 inch color TFT-LCD, simple for operating, quickly&accurately measure the data;
• Build-in rechargeable Li-battery, up to 15 hours running time, support AC and DC power;
• Adjustable audible and visual alarms, and sensor off alarm;
• Long time monitoring and sleeping monitoring;
• Easy to carry, suitable for ambulance center, has the stand for fixing;
• USB and Bluetooth data upload;
• Printer, Et-CO2, FiCO2 and RR are optional.

Speficiation

ECG

Input:5- lead ECG cable, standard AAMI cable connector

Lead Selection:I,II,III,avR,avL,avF,C

Gain Selection:1,2,4,8

Sweep Speed: 12.5, 25, and 50 mm/s

Frequency Response: None filter: 0.05100Hz (-3dB), filter: 0.540Hz (-3dB)

Calibration Signal: 1mV square wave

Protection: against electrosurgical interference and defibrillation

Heart Rate

Measuring Range: 20 bpm300 bpm

Renew Time: 1 time per beat

Accuracy: 1 bpm

Alarm Mode: Audible and visual alarm

SpO2

Measuring Range:0%100%

Resolution:1 %

Accuracy:2 %(90%99%),3 %(70%89%),unspecified (0%69%)

Pulse Rate

Measuring and Alarm Range:20300bpm

Resolution:1bpm

Accuracy: 1bpm

NIBP

Method: Oscillometric

Mode: Manual, Auto, STAT

Measuring Interval in AUTO Mode: 1, 2, 3, 5, 10, 15, 20, 30, 45, 60 (min)

Measuring Period in STAT Mode: 5 min

Cuff Pressure Range: 0 mmHg300mmHg

Pulse Rate Range: 30 bpm250bpm

Measurement Rage: Adult 30 mmHg255mmHg, Pediatric 30 mmHg160mmHg

over-pressure Protection: Adult 300mmHg,

Pediatric 220mmHg

Pressure Resolution: 1mmHg

Temperature

Input: Body surface thermal-sensitive resistor temperature sensor

Measuring Range: 050

Accuracy: 0.1

Storage and Review

Maximum Data Quantity:  3888 groups

Maximum Trend Time:  Continuous 129.6 hours

System

Measurement Display: 5 inch color TFT- LCD touch screen

Resolution: 800x600

Optional Parameter: Et-Co2, RP, Printer, Trolly, Wall-mounted bracket

Input: 100240VAC, 50/60Hz, 0.7A

Output: DC 5V, 1.5A

Power Supply Indicator: Dual-color LED (red/green)

Charging indicator: A green LED

Size: 160mm160mm100mm

Net Weight: 750g
