Benemed Industry Company

Specification
General Description:
Imaging Modes:    B, B/B, B/M, 4B, M
Scanning Modes:   Convex, Linear
Gray Scale:         256
Display:              12'' TFT LED monitor
Gain:                 up to 120dB
Scanning dept:      up to 250mm
Imaging technology: Digital Beam-forming
Dynamic Frequency Scan
                        Dynamic Receiving Focusing
Dynamic Receiving Apodization
Real-time Dynamic Aperture
Imaging Processing
Pre-processing:     Dynamic range
Line Density
                        Frame correlation
                        Edge enhance
Post-processing:     Gray scale
Gray reject
Scan angle
                        Polarity reverse
                        Left/Right reverse
                        up/down reverse
Functions:
ZOOM:                Local zoom
                        Panoramic zoom
Image memory:     127 frames
Cine Loop:           256 frames
View:               Patient info, patient image, Patient report
Pseudo color:        16 colors selectable
Software Functions
General measurement:  distance, circumference, area, volume, angle, ration, etc
Calculation package: abdomen, cardiac, gynecology, obstetrica, urology,                                                                                                                         orthopedics, small parts, etc

Peripheral ports:      USB  SVGA  PAL-D  Video output
Others:
Net weight:            6.0KG
Power supply:          AC 220V22V 50Hz
Dimensions:           480*380*410
Standard Configurations:

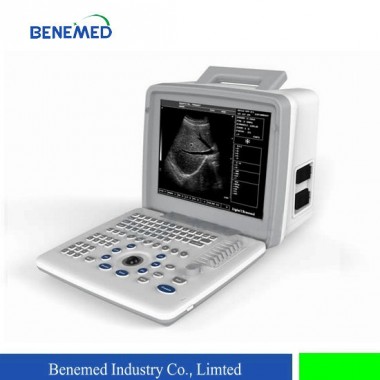

BW-5 main unit
12'' TFT monitor
Two transducer connectors
256 frames cine loop
Electronic convex transducer
