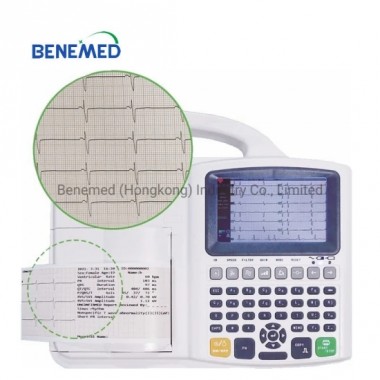

6 Channel Portable ECG Machine Electrocardiograph ECG601

  • FOB Price:US $299-499 / Vial(s)
  • Min.Order:1 Vial(s)
  • Production Capacity:1000 Units/Month
  • Payment Terms:T/T , Money Gram
  • Favorite
Benemed Industry Company

Business Type:Manufacturer

Country/Region:China

Ddu Verified

HOT Rank

6/10

Product Information

  • Model:ECG601
  • Certification:CE
  • Net Weight:2.8 Kg
  • Dimension:32*25*17cm
  • Packaging Details:Carton with Foam
  • Brand Name:BENEMED
  • Trademark:BENEMED
  • Place of Origin:China
  • Warranty:1 year

Description

Features:

  1. 7 inch high resolution color touch screen
  2. 12-lead simultaneous acquisition and display
  3. ECG Automatic measurement and interpretation function
  4. Complete digital filters, resisting baseline drift, AC and EMG interference
  5. Compact and Lightweight design
  6. Support USB flash disk and micro SD card to extend memory
  7. Software upgrade via USB/SD card
  8. Built-in rechargeable Li-ion batter
Specification:

Items
 		 Specification:

Lead
 		Standard 12 leads
Acquisition ModeStandard 12 leads acquisition
Measurement Range±5mmVpp
Input circuitFloating; Protection circuit against Defibrillator effect
Input Impedance≥ 50MΩ
Input circuit current< 0.05uA
Record modeAutomatic:3CH×4+1R,3CH×4, 3CH×2+2CH×3.3CH×2+2CH×3+1R,6CH×2:

Manual: 3CH, 2CH,3CH+1R,2CH+1R,

Rhythm: Any lead seleclable
FilterEMG Filter: 25Hz/ 30Hz/  40Hz/ 75Hz/ 100Hz/ 150Hz

DFT Filter: 0.05Hz/0.15Hz

AC Filter: 50Hz/60Hz,
CMRR >100dB
Patient leak current<10uA(220V-240V)
Frequency Response0.05Hz-150Hz(-3dB)
Sensitivity2.5mm/mV,  5mm/mV,  10mm/mV,  20mm/mV,(error ±5%)
Arti-baseline DriftAutomatic
Time constant ≥ 3.2s
Noise level<15uVp-p
Paper speed12.5mm/s , 25mm/s ,50mm/s ,
Recording modeThermal printing system
Paper specificationRoll 110mm*20M
Safety StandardIEC NCF
Sample RateNormal: 1000sps/channel
Power SupplyAC: 100-240V, 50/60Hz, 30VA-100VA

DC: 14.8V/2200mAh,Built-in lithium battery
